RAG Repair¶

Given a failing tool call, this component attempts to use an LLM to repair the call while making use of domain documents such as documentation or troubleshooting examples via RAG. This component will require a set of related documents to ingest.

Overview¶

The most common pattern for tool calling is to call a tool that returns some information. The agent then needs to process the tool response and extract the information from it. This information may be required either to respond back to the user or for the next step of the agent. Tool calls may fail for any number of reasons and resolution may require knowledge of the state of the external tool as well as domain knowledge. This tool attempts to use both types of knowledge to repair tool calls by using the tool call response along with retrieving related documentation via RAG.

Architecture¶

The figure below shows how the RAGRepair component creates a repair context from the query, tool execution input and result, and related documents from RAG.

For now, the default retrieval method is using sentence embeddings along with Chroma with an option to use BM25 instead. Other storage methods may be considered in the future.

rag_architecture

Interface¶

Input format¶

This component expects documents to be provided in a local path. Optionally, documents can be divided into manual pages/documentation in a man folder and other documents such as troubleshooting documents in a doc folder. If these folders are not provided, then all documents are considered non-documentation. Nested folders are supported for ingesting. Supported files are: pdf, html, json, jsonl.

The class post_tool.core.toolkit.RAGRepairRunInput expects three main inputs as follows:

messages: List[BaseMessages], a list of messages from the agent, this is optional but will be used to infer the task at hand if nl_query is not provided.
tool_call: str, this is the tool call generated by the agent.
nl_query: str (optional), this is the natural language description of the task at hand, the agent should be using this to generate a tool call. Takes priority over messages.
error: str (optional), this is the response from the tool, expected to describe what the error is.

5original_function: function (optional), this is the original tool that was called, if provided will re-call the tool with the repaired command.

Output format¶

The output is a RAGRepairRunOutput object with the following three properties:

new_cmd: str, the repaired tool call.
retrieved_docs: str, a block of text aggregating all the retrieved documents used.
result: str, the result of re-calling the original tool with the new command. Will only be filled if original_function is given.

Results¶

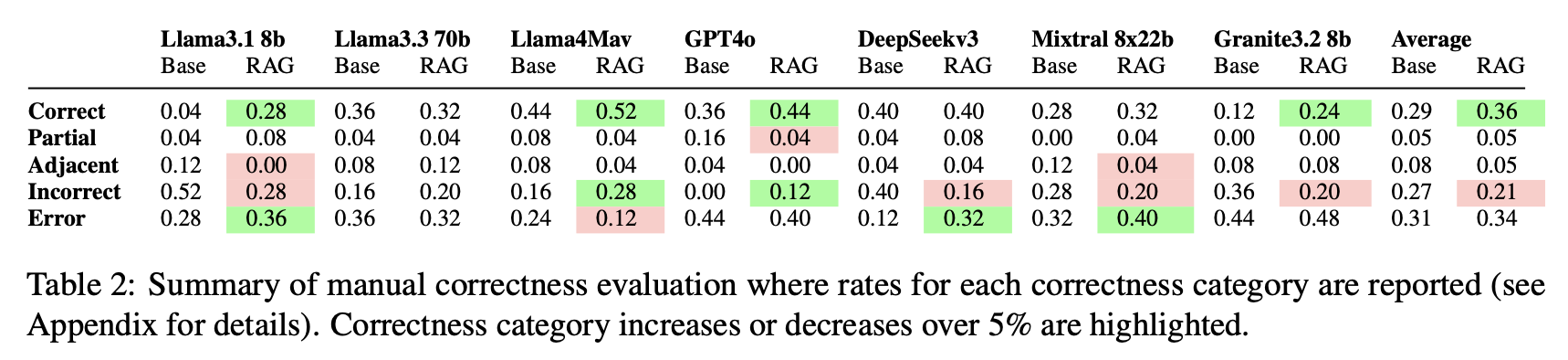

This component has been evaluated on a set of kubectl commands. The table below details a manual evaluation on how often this component correctly repairs failing kubectl commands.

Additional results are reported in [1].

rag_results

Getting Started¶

When it is recommended to use this component:¶

Although this component will technically work without related documents, this approach relies on having related documentation and/or troubleshooting documents such as blog posts or developer Q&As. Use cases where documentation is available or can be generated would benefit the most from this approach. Our evaluation suggests that this approach may be more effective for agents with smaller models as they may be less likely to already contain knowledge related to the tool. Similarly, tools where related documents are available but are not widely used in LLM training data would also benefit from this approach.

Note that this component does not identify errors, it is expected that the agent knows that the tool call failed either through a failed tool call or LLM reflection.

Quick Start¶

Here is how you can call the code generation based tool response processing:

from altk.core.toolkit import AgentPhase
from altk.post_tool.rag_repair.rag_repair import RAGRepairComponent
from altk.post_tool.rag_repair.rag_repair_config import RAGRepairComponentConfig
from altk.post_tool.core.toolkit import RAGRepairRunInput, RAGRepairBuildInput

# First, the RAG is set up in the BUILD phase
local_docs_path = "/path/to/docs"
repairer = RAGRepairComponent(docs_path=local_docs_path)
repairer.process(RAGRepairBuildInput(), AgentPhase.BUILDTIME)

# Example of failing command generated and run by agent
nl_query = "Get all alerts in the otel-demo namespace"
cmd = "kubectl get alerts -n otel-demo"
# (cmd is run by agent and the resulting error is below)
response = "error: the server doesn't have a resource type \"alerts\""

# Use RAGRepair to repair command in the RUN phase
input_data = RAGRepairRunInput(
    nl_query=nl_query,
    tool_call=cmd,
    error=response
)
output = repairer.process(input_data, AgentPhase.RUNTIME)

There are two phases in using this component: 1. BUILD - this is during agent setup, will ingest documents and create a local Chroma vector database for usage. 2. RUN - this is during each failing tool call, will create a repair context and attempt to repair the tool call.

Configuration¶

When creating RAGRepairComponent the only required parameter is docs_path which points to the local documents. Other configuration which includes LLM model, provider, and RAG settings can be configured by creating a RAGRepairComponentConfig. For example:

from altk.core.llm import get_llm
from altk.post_tool.rag_repair.rag_repair import RAGRepairComponent
from altk.post_tool.rag_repair.rag_repair_config import RAGRepairComponentConfig

OpenAIClient = get_llm("openai.sync")
config = RAGRepairComponentConfig(
    llm_client=OpenAIClient(api_key="<insert openai key here>"),
    model_id="meta-llama/llama-3-405b-instruct",
    persist_path=".chroma",
    chunk_size=100
)
repairer = RAGRepairComponent(
    docs_path="localdocspath",
    config=config
)

A non-comprehensive list of what can configured: - retrieval_type: str, can choose betwen chroma for embedding vector store or bm25 ranking - persist_path: str, where the vector storage will be created in the local filesystem - docs_filter: str, can use this to return only man (documentation) or doc (other documents) from RAG - chunk_size: int, chunk size in character when splitting documents - embedding_name: str, embedding model used in vector storage

Please see RAGRepairComponentConfig for the full list of configuration options.

Performance Considerations¶

This component will need to ingest documents and has not been tested on very large documents. Doing so may incur performance costs during the vector store build process.

This component has mostly been tested on Kubernetes commands/documents. Testing for other domains such as general web APIs or software engineering is future work.

Testing¶

Running Tests¶

# Run all tests for post-tool-reflection
uv run pytest tests/post-tool/ragrepair_test.py

# Run RAGRepair-specific test
uv run pytest tests/post-tool/ragrepair_test.py

Ready to get started?¶

Go to our GitHub repo and run this example or get the code running by following the instructions in the README.

References¶

[1] Tsay, J., et al., "Repairing Tool Calls Using Post-tool Execution Reflection and RAG," arXiv preprint arXiv: (2025). https://arxiv.org/abs/2510.17874
