JSON Processor: Code Generation for JSON Tool Response Processing

If the agent calls tools which generate complex JSON objects as responses, this component will use LLM based Python code generation to process those responses and extract relevant information from them.

See a demo of this component in action here.

Overview

The most common pattern for tool calling is to call a tool that returns some information. The agent then needs to process the tool response and extract the information from it. This information may be required either to respond back to the user or for the next step of the agent. When the tool responses are in JSON format, and the agent knows what information is needed from it, the code generation component prompts a LLM to generate Python code for parsing the JSON and extracting the required information. It executes the generated code and returns back the extracted content if the code execution succeeds.

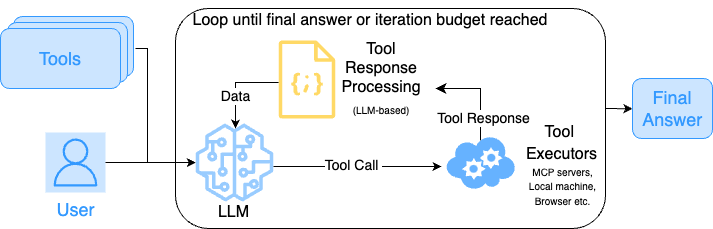

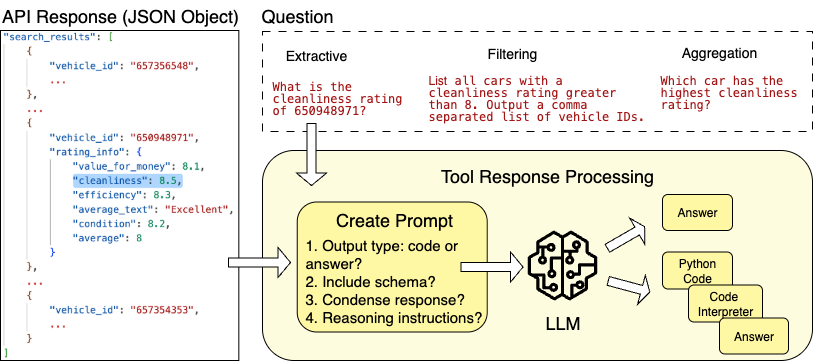

The figures below show the flow of tool calling with the code generation based JSON processor component:

Architecture

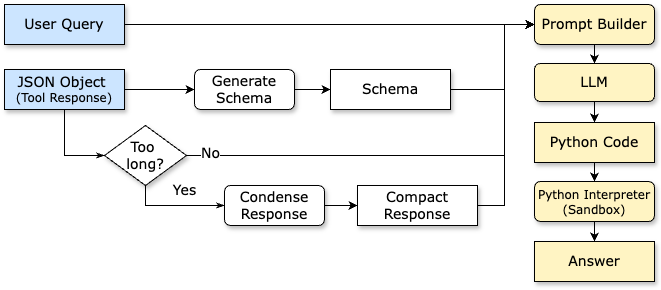

The figure below shows how the JSON processor component processes the tool response to get the answer i.e. the information from the JSON object by calling an LLM using a prompt that includes the JSON response and a natural language query.

Given a user query and a tool response (as a JSON object), we 1. generate a schema from the JSON object (see and example below) using existing Python libraries such as genson, 2. determine if the response can fit in the prompt, and 3. if it is too long, we condense the response using a heuristic algorithm.

We construct the prompt with the above inputs and pass it to an LLM that generates Python code to process the JSON object (see example below). The generated code is executed by a Python interpreter in a sandbox (for security reasons) to generate the final answer to the user's query.

Sample Schema

```python
schema = {
    "rating_info":{
        "type": "object",
        "properties": {
            "no_of_ratings":{ "type": "number" },
            "dropoff_time":{ "type": "number" },
            "location":{ "type": "number" },
            "cleanliness": { "type": "number" }
        }
    }

} ```

Sample LLM generated Python code

python\ndef get_cleanliness_rating(api_response):\n    if not isinstance(api_response, dict):\n        return ""\n    \n    data = api_response.get("data")\n    if not isinstance(data, dict):\n        return ""\n    \n    search_results = data.get("search_results")\n    if not isinstance(search_results, list):\n        return ""\n    \n    for result in search_results:\n        if not isinstance(result, dict):\n            continue\n        \n        vehicle_id = result.get("vehicle_id")\n        if vehicle_id and str(vehicle_id).strip().lower() == "650948971":\n            rating_info = result.get("rating_info")\n            if isinstance(rating_info, dict):\n                cleanliness = rating_info.get("cleanliness")\n                if cleanliness is not None:\n                    return str(cleanliness)\n    \n    return ""\n

Interface

This component expects the following inputs and generates the following outputs.

Input

1. nl_query: this is the natural language description (of datatype str) hinting at what information needs to be extracted from the response. It can be the agent's thought corresponding to the tool call or the user query directly.

   Example: What is the cleanliness rating of 650948971?

2. tool_response: this is the JSON object from the tool (of datatype Any). A portion of the JSON response is shown below.

   Example:

    json_response = {
        "search_results": [
            {
                "vehicle_id": "657356548",
                ...
            },
            {
                 "vehicle_id": "650948971",
                  "rating_info": {
                        "value_for_money": 8.1,
                        "cleanliness": 8.5,
                        "efficiency": 8.3,
                        "average_text": "Excellent",
                        "condition": 8.2,
                        "average": 8
                    }
              }
        ]
    }


Output

1. answer: this is the final obtained by executing the generated Python code on the JSON object.

   Example: 8.5 (based on the example above)

Results

We evaluate our approach on a question-answer (QA) dataset containing 1298 samples (580 extractive, 394 filtering and 324 aggregation).

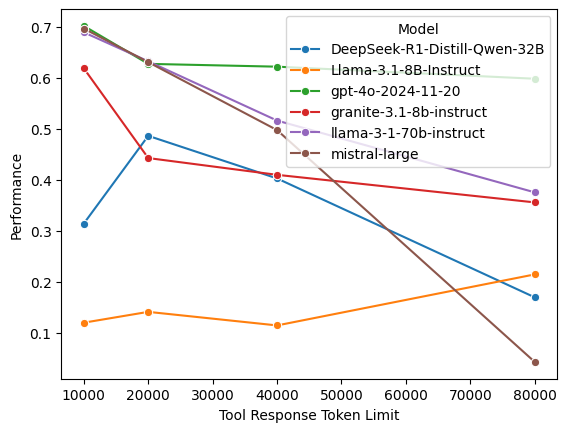

Models' performance degraded as the JSON response increased in length, as shown in the figure below.

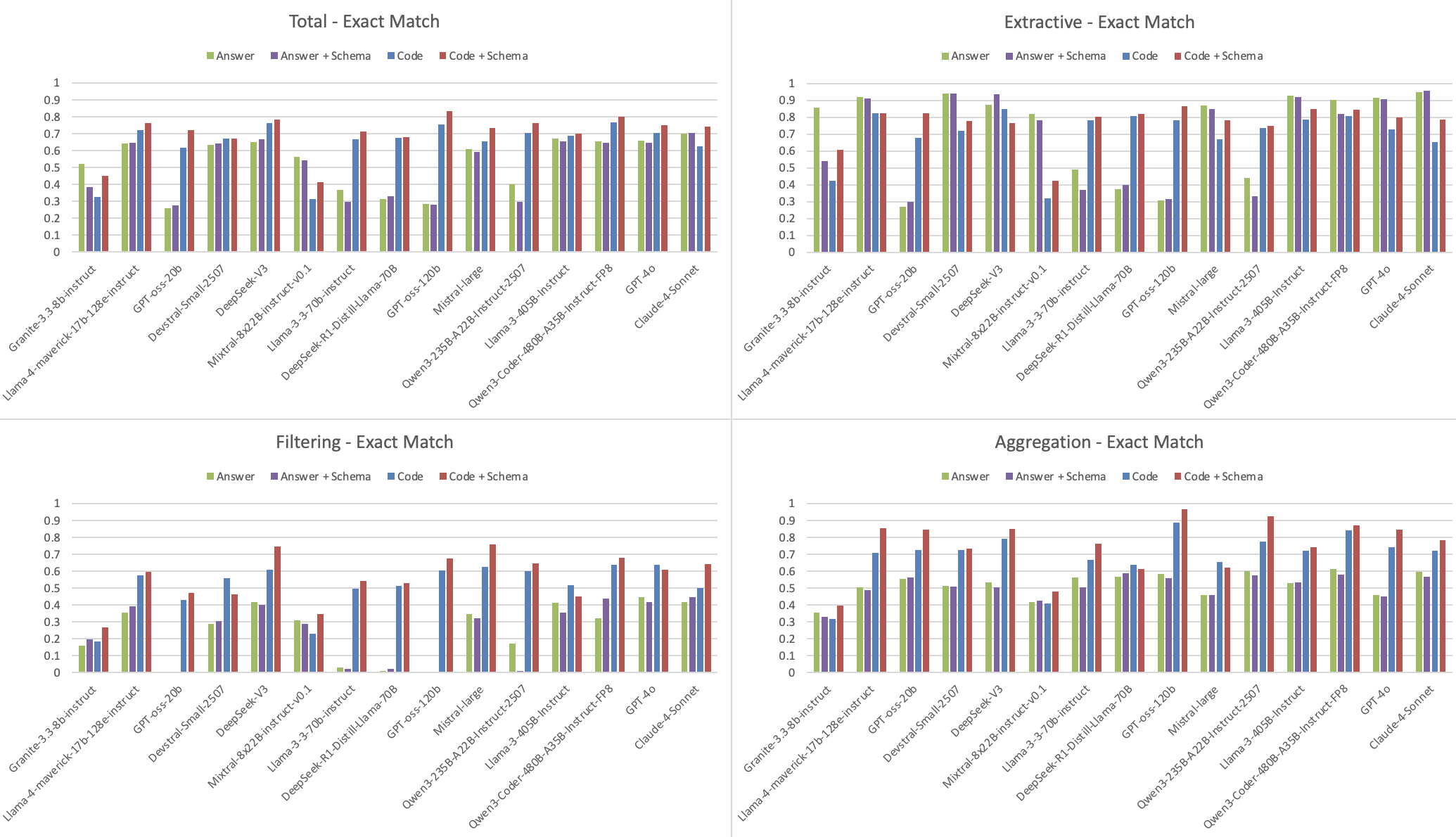

Across model families and sizes, adopting our JSON processor (red bars in the figure below) approach leads to accuracy gains ranging from +3% to +50% depending on the model compared to adopting a direct prompting approach that prompts the model to generate answer directly.

Additional results are reported in [1].

Getting Started

When it is recommended to Use This Component:

Based on our evaluation, this approach to tool response processing is effective when the JSON tool responses are large and complex/highly nested and when the processing required is not trivial. For example, when the information to be extracted from the response is present as a single key, it might be easier for the model to extract it without code generation. But for more complex processing such as filtering and aggregation, code generation based processing is more accurate.

Quick Start

Here is how you can call the code generation based tool response processing:

from altk.core.toolkit import AgentPhase
from altk.post_tool.code_generation.code_generation import CodeGenerationComponent
from altk.post_tool.core.toolkit import CodeGenerationRunInput, CodeGenerationRunOutput

nl_query = "I need info about X from service Y."
response = {...}  # this is some tool or api response in JSON format
component = CodeGenerationComponent()

input_data = CodeGenerationRunInput(
    messages=[],
    nl_query=nl_query,
    tool_response=response
)
output = component.process(input_data, AgentPhase.RUNTIME)

Configuration

The LLM model, provider and inference settings can be configured when creating the CodeGenerationComponent by supplying the relevant parameters. For example:

from altk.post_tool.code_generation.code_generation import CodeGenerationComponent

component = CodeGenerationComponent(
    model_id="meta-llama/llama-3-405b-instruct",
    provider="openai.sync",  # can be one of: openai, watsonx, litellm
    model_kwargs={
        "temperature": 0.5,
        "max_tokens": 1000,
        "min_tokens": 20,
        "seed": 42,
    }
)

• use_docker_sandbox when set to True will use the DOCKER_HOST in the environment variables to run the generated code in a container, setting to False will use a restricted Python interpreter locally. Running the generated code locally while faster carries some security risks.

Examples

from altk.core.toolkit import AgentPhase
from altk.post_tool.code_generation.code_generation import CodeGenerationComponent
from altk.post_tool.core.toolkit import CodeGenerationRunInput, CodeGenerationRunOutput

component = CodeGenerationComponent()

input_data = CodeGenerationRunInput(
    messages=[],
    user_query=user_query,
    tool_responses=response
)
output = component.process(input_data, AgentPhase.RUNTIME)

Input Format

The class post_tool_reflection_toolkit.core.toolkit.CodeGenerationRunInput expects two main inputs as follows:

1. nl_query: str, this is the natural language description hinting at what information needs to be extracted from the response. It can be the agent's thought corresponding to the tool call or the user query directly.

2. tool_response: Any, this is the JSON response from the tool.

Output Format

The output is a CodeGenerationRunOutput object with a result property that contains the data that was extracted using the generated code.

Testing

This component includes comprehensive test suites:

Running Tests

# Run all tests
uv run pytest tests/post-tool-reflection/

# Run specific test categories
uv run pytest tests/post-tool-reflection/codegen_test.py

Ready to get started?

Go to our GitHub repo and run this example or get the code running by following the instructions in the README.

References

[1] Kate, K., et al., "How Good Are LLMs at Processing Tool Outputs?," arXiv preprint arXiv: (2025). https://arxiv.org/pdf/2510.15955

[2] Kate, K., et al. "LongFuncEval: Measuring the effectiveness of long context models for function calling." arXiv preprint arXiv:2505.10570 (2025). https://arxiv.org/pdf/2505.10570
